Feature

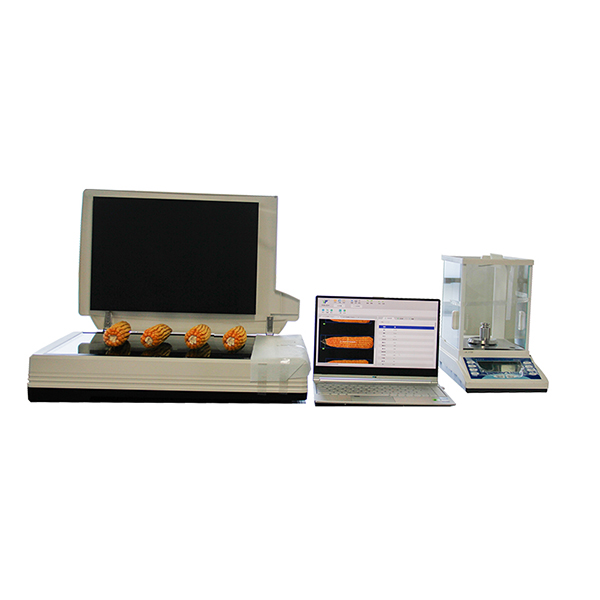

1. Scanner:A3(max resolution 1600dpi*1600dpi), Qinghua Purple light M1 color scanner.
2. Analysis speed:10ears,35sections,1000kernels analyzed once.
3. Data storage: images, automatic generation of report and export in Excel, supplement stored is available.
4. Color analysis: RGB color display, With comparative analysis of sample color, shape.
5. Moisture test: equipped with a moisture meter.
6. Image analysis: arbitrarily zoom in or zoom out, partial observation.
7. Weight conversion: equipped with electric balance, weight data can be imported and exported through RS232. Then the system converts the weight to 1000/100-grain weight.
8. Embryo tips mark: the system is able to automatically recognize and mart the embryo tips of the corn and record its quantity.
9.Precision error: 1500-4000kernels/min ,automatic counting error: ≤±0.5%,and reach 100% correct through manual correction;
Kernels size error:≤±0.3%; 1000grain weight analysis error: ≤±0.5%.
2. Analysis speed:10ears,35sections,1000kernels analyzed once.
3. Data storage: images, automatic generation of report and export in Excel, supplement stored is available.
4. Color analysis: RGB color display, With comparative analysis of sample color, shape.
5. Moisture test: equipped with a moisture meter.
6. Image analysis: arbitrarily zoom in or zoom out, partial observation.
7. Weight conversion: equipped with electric balance, weight data can be imported and exported through RS232. Then the system converts the weight to 1000/100-grain weight.
8. Embryo tips mark: the system is able to automatically recognize and mart the embryo tips of the corn and record its quantity.
9.Precision error: 1500-4000kernels/min ,automatic counting error: ≤±0.5%,and reach 100% correct through manual correction;
Kernels size error:≤±0.3%; 1000grain weight analysis error: ≤±0.5%.
Analysis function
|
Type
|
Function
|
|
Intact Ear Analysis
|
Test ear row, ear length, ear width, barren ear tip length, ear angle, ear color, kernels quantity, kernels thickness
|
|
Section Analysis
|
Test kernels per row, Axis diameter, kernel length, kernel width. At least 15 sections can be detected each time.
|
|
Kernels Analysis
|
Test kernels quantity, unit weight, kernel size (length, width, aspect ratio, perimeter, area diameter) moisture, color, the number of embryo tips and etc.
|
