1、Total magnification: 40X-1600X
2. Eyepiece:WF10X/18mm, WF16X/13mm(optional)
3. Objective: 4X, 10X, 40X, 100X
4. Viewing Head:30°inclined,360° rotatable
5. Nosepiece:Four Holes Nosepiece
6. Stage: 140mm*140mm
7. Focusing mechanism:Coarse and fine movement coaxial, adjustable elasticity,
Coarse movement stroke: 28mm, fine movement accuracy: 0.002mm
8. Illumination: USB flexible light, 360° lighting without any blind spot
9. Condenser: Abbe condenser N.A=1.25
10. Camera interface: Yes

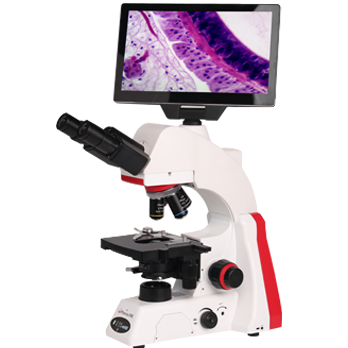

LCD Digital Microscope With Tablet TMC100
| Total magnification | 40X-1600X | |
| Observation tube | Compensation Binocular tube, 30 °inclined, interpupillary distance 48-75mm | |
| Display tablet | 11.6-inch full HD IPS touch screen, Windows 10 operating system | |
| 160° vertical flip, 270° horizontal rotation | ||
| Photographyb module | 8 million pixels 1/1.8 inch CMOS | |
| Eyepiece | High eyepoint wide field WF10X/18mm
WF16X/13mm(optional) |
|
| Objective | Plan objective | 4X,10X,40X(Spring),100X(Spring, Oil) |
| Achromatic Objective(Optional) | 4X,10X,40X(Spring),100X(Spring, Oil) | |
| Nosepiece | Four Holes Nosepiece | |
| Stage | Curved double-layer mechanical platform, 140*140mm, stroke 76*52mm | |
| Focusing system | Coarse and fine movement coaxial, adjustable elasticity, Coarse movement stroke: 28mm, fine movement accuracy: 0.002mm |
|
| Condenser | Abbe condenser, NA=1.25, iris diaphragm, center adjustable, handwheel lifting | |
| Illumination system | Critical illumination, adjustable field diaphragm | |
| Upper Light source | USB flexible light, 360° lighting without any blind spot | |
| Bottom light | 3W LED, brightness adjustable, right-side insertion and removal | |
| Intelligent sensing device | 30 minutes delay induction shutdown | |
| Photoelectric Smart Display | Display LED up and down light brightness, battery level, ECO | |
| Power supply | External regulated power adapter DC 5V/2A, Rechargeable battery 3.7V-1600mAh | |
| Microscope interface | HDMI, USB3.0, USB2.0, LAN, Type C, ANT | |
| Dimension | Instrument size: 410mm(length)*285mm(width)*578mm(height) | |
| Bracket size: 285mm(length)*190mm(width)*291mm(height) | ||
| Optional | Color temperature switching, ECO human body induction, Kolher lighting | |
