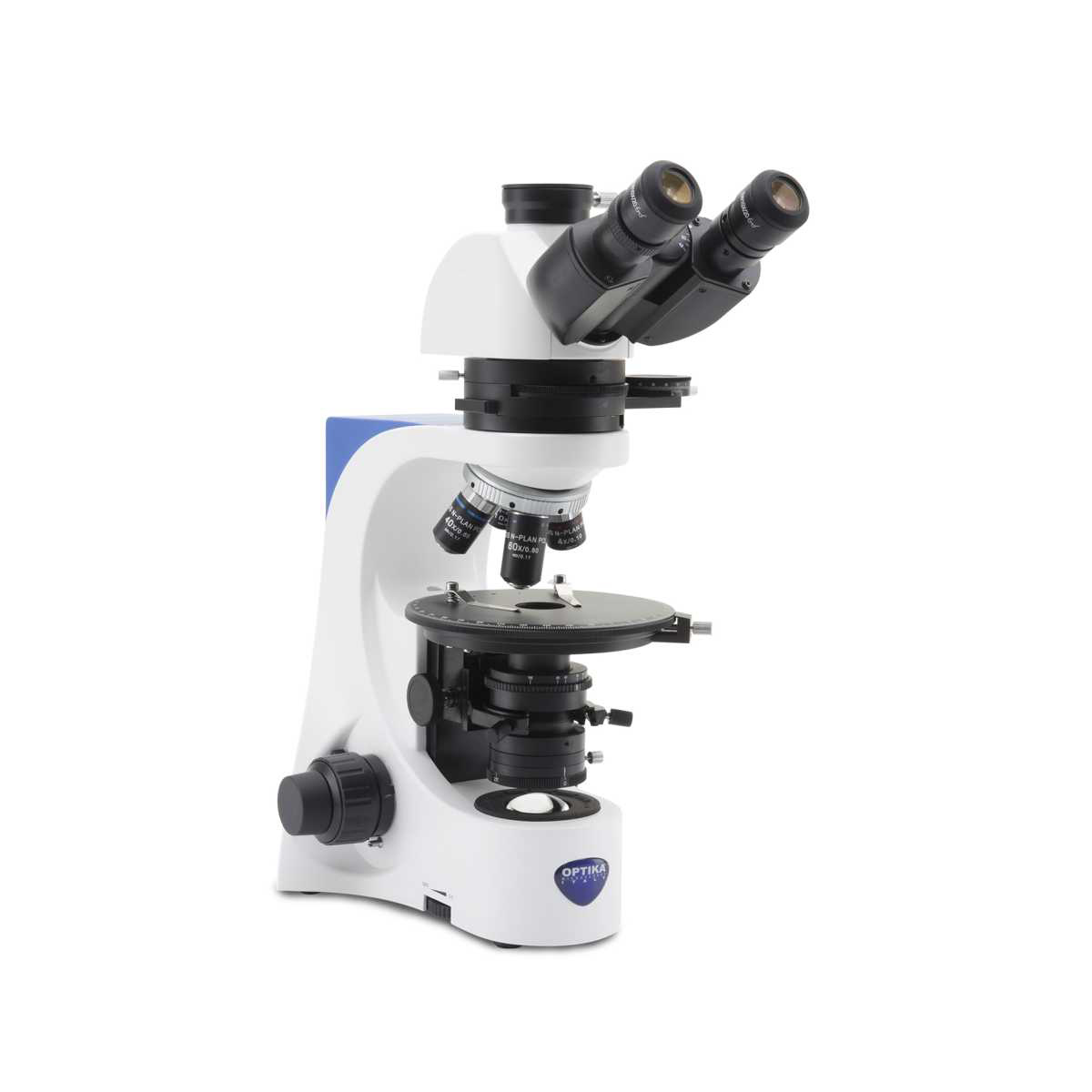

Trinocular Polarizing Microscope

Trinocular Polarizing Microscope

Model TH100-PG-A TH100-PG-B
Observing style Transparent (transparent illumination)
Magnification 40X-400X 40X-630X
Observing tube Trinocular, 45°inclined, interpupillary distance 55-75mm
Eyepiece WF10X/18mm
Unstressed plan objectives Without coverslip, PL4X/-
Without coverslip, PL10X/-
Without coverslip, PL25X/0.40
Without coverslip, PL40X/0.65(Spring)
Without coverslip, PL63X/0.85(Spring)
Middle tube Built-in analyzer, normal observation and polarized light observation can be freely switched, 90 degree rotatable with scale
Rotary bertrand lens, height and center adjustable
λCompensator
λ/4 Compensator
Quartz Wedge Compensator
Focusing system Coaxial coarse&fine focusing knob, coarse focusing range 26mm, fine focusing graduation 0.002mm
Nosepiece 4 Holes 5 Holes
Stage Rotatable stage, 360degree scale, grid: 6′ centre adjustable with lock unit, dia of circle: 160mm
Tramsmitted illumination Polarizer: 360°rotatable, 0,30,45,90,180,270,315 degree grade
Illuminator: LED
Illumination: LED 3W, brightness adjustable
Polarized condenser: NA.0.85, aperture adjustable, up and down
Package Foam+ Carton
Category:

1. Total Magnification: 40X-630X
2. Eyepiece: WF10X/18mm
3. Objective: PL4X, 10X, 25X, 40X,63X
4. Viewing Head:45°inclined
5. Nosepiece:4 holes/ 5 holes
6. Stage: 160mm
7. Focusing mechanism:Coaxial coarse&fine focusing knob, coarse focusing range 26mm, fine focusing graduation 0.002mm
8. Illumination: LED 3W, brightness adjustable
9. Condenser: Polarized condenser: NA.0.85
10. Camera interface: No
